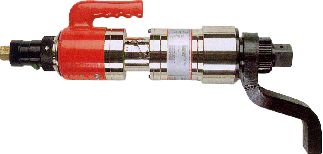

Pneumatic multiplier, Manual Two Speed, 1" square drive;Pneutorque PT2700.MTS


Pneutorque PT5500 MTS

These 'Pneutorque' models share the same features as the 'Standard' series, but have a higher torque output for a given gearbox diameter. Two Speed Models offer all of the advantages of single speed versions but with the additional benefit of a run down speed five times greater than the final torque speed. The Manual Two Speed gearbox can enhance the degree of control that the operator has over the tightening process, as the gear speed can be changed manually.


Product's part number:  18027.MTS
Product's NATO number:
Product's Accuracy:  +/-5%
Operates between:
650 - 2000 lbf.ft
880 - 2700 N.m
90 - 275 kgf.m

    Technical Specification
  • Square Size: 1"
  • Max Air Pressure: 4.4 bar
  • Vel Ratio Low Speed: 885.185:1
  • Vel Ratio High Speed: 162.284:1
  • Free Run Low Speed: 5 revs/min
  • Free Run High Speed: 25 revs/min
  • Air Consumption: 19 litres/sec
  • Tool Weight: 18 Kg
  • Reac Plate Weight: 2 Kg
    Features
  • Electronic torque transducers can be fitted for precise torque monitoring.
  • Reaction foot can slide on the spline to allow for sockets of various lengths.
  • Reduced diameter allows improved access.
  • High torque output - up to 5500 N.m.
  • Reversible - Pneutorques can be used for tightening and untightening.

Downloads:AutoCAD Outline DrawingMetafile Outline DrawingOperators Handbook
Catalogue:Pg50-51.pdf
