Torque Tools, Torque Measuring Equipment

Hand operated torque multipliers are ideal for low volume or intermittent use or when there is no power source available. However, for production lines or whenever a large number of bolts is involved, a powered multiplier will save a considerable amount of time.

Pneutorque operation is quiet - less than 85dB(A) with absolutely no impacting. These two factors make Pneutorques comfortable for the operator to use, reducing fatigue and consequently increasing safety.

Pneutorques provide accurate torque control - on a given joint they will stall repeatably to within +5%. Using electronic shut off, this repeatability can be improved to +1%.

The Pneutorque consists of a robust air motor driving a Norbar multiplier with three or more stages of epicyclic gearing.

Torque control is achieved by adjustment of the air pressure. An air pressure versus torque graph and a calibration certificate is supplied with each tool and allows specific torque values to be set. For more critical applications, Pneutorques can be fitted with a torque transducer and the precise torque output displayed. The tool can then be shut off at the desired torque either manually or automatically using suitable control circuitry.

Models are available up to 100,000 N.m (73,000 lbf.ft).

Pneutorque PTM-52 Series

PTM-52 Series Pneutorque The PTM-52 is engineered to be one of the lightest and fastest tools of its type on the market. The exceptionally compact 52mm diameter gearbox means that the tool is well balanced, light weight and provides excellent access to bolts. Fast - 800 N.m version has a free speed of 175 rpm for rapid bolt run-down.

Light weight - single direction stall tool weighs just 3.8 kg.
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

Pneutorque PTM-72 Series

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

Fast - 1000 N.m version has a free speed of 140 rpm for rapid bolt run-down.
Light weight - single direction 2000 N.m stall tool weighs just 6.2 kg.
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

Bi-Directional models can also be supplied as Shut-Off versions, with either Internal or External control, with miminum impact on the overall tool size and weight, meaning that a repeatability of +/-2% can be guaranteed.

Pneutorque PTME-72 Series

PTME-72 Series Pneutorque The PTME-72 series of tools was designed to meet the needs of the commercial vehicle wheel market.

The integrated reaction foot is designed specifically to reach recessed wheel bolts and the 72mm diameter gearbox is selected to cope with the high frequency of use demanded by busy tyre shops.

Fast - 1000 N.m version has a free speed of 140 rpm for rapid bolt run-down time.
Light weight, for ease of handling.
Extended reaction is ideal for reaching recessed nuts.
Quiet - less than 85 db(A) when under load.
Non-impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

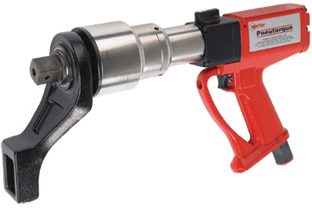

Pneutorque PTM-92 Series

PTM-92 The latest extension to the PTM tool range brings the speed advantage to the twin motor handle to higher capacity Pneutorque models.

Coupled with new gearbox designs, these new models deliver an ideal balance between robustness, speed and weight.

Fast - 2700 N.m version has a free speed of 57 rpm for rapid bolt run-down time.
Light weight - PTM-92-2700 weighs just 8.5 kg. All models are fitted as standard with a light but robust aluminium reaction plate.
Other reaction styles are available for maximum versatility.
Quiet - less than 85 db(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
Bi-directional. The direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

Pneutorque PTM-119 Series

PTM-92 The latest extension to the PTM tool range brings the speed advantage to the twin motor handle to higher capacity Pneutorque models.

Coupled with new gearbox designs, these new models deliver an ideal balance between robustness, speed and weight.

Fast - 4500 N.m version has a free speed of 32 rpm for rapid bolt run-down time.
Light weight - PTM-119-4500 weighs just 13.3 kg. All models are fitted as standard with a light but robust aluminium reaction plate.
Other reaction styles are available for maximum versatility.
Quiet - less than 85 db(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
Bi-directional. The direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

Pneutorques 72 Diameter

72mm Gearbox allows excellent access.
Powerful - up to 2000 N.m output.
Switchable forward and reverse operation.
Quiet - less than 81dB(A), and non impacting for low operator fatigue.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction take up.
For safety, gearbox can turn independently from handle. Torque reaction is never transmitted back to the operator.
All torques can be achieved at less than 6 bar (90 psi).
Can also be supplied as Automatic Two Speed models giving the advantage of a run down time five times greater than the final torque speed.
All models are available as Remote control versions.

Pneutorque Small Diameter Series

These Pneutorque models share the same features as the 'Standard' Series, but have a higher torque output for a given gearbox diameter.

Reduced diameter allows improved access.
High torque output - up to 5500 N.m.
Reversible - Pneutorques can be used for tightening and untightening.
Reaction foot can slide on the spline to allow for sockets of various lengths (except PT4500).
Electronic torque transducers can be fitted for precise torque monitoring.
PT4500 has integral angle protractor for easy torque and angle tightening.
PT4500 employs a pistol grip style motor.
Two Speed Models are available offering the advantages of single speed versions but with the additional benefit of a run down speed five times greater than the final torque speed.

Pneutorques 108 Diameter

Based on the original Pneutorque, the 'Standard Series' range is a direct result of over 40 years of refinement and development necessary to keep pace with industry's requirements today.

In use on many thousands of applications worldwide, Pneutorque Wrenches continue to represent the foundation of Norbar's powered tool range.

Models available for almost every bolting application, up to 100,000 N.m
Forward and reverse operation.
Low operator fatigue - quiet, non impacting or pulsing.
Repeatability of +/-5%.
A variety of reaction styles are available for maximum versatility.
Electronic torque transducers can be fitted for precise torque monitoring.
Available with manual or automatic two speed gearbox to reduce bolt rundown time.
All models are available as Remote control versions.

Filter, Regulator, Lubricator Unit

For use with all Norbar Pneutorque pneumatic multipliers.

Nose Extensions

Special nose extension reaction devices are available for use in situations where the tool access is restricted. A typical application is the rear wheel nuts on heavy vehicles.

Offsets

Originally designed to tighten plate heat exchangers where nuts have to rundown studs up to 1 metre.

Offsets are invaluable in situations where access is limited due to headroom or tool diameter.

The Geared Offset has been developed to enable the tightening of fasteners in environments where access restrictions prevent the use of a standard multiplier or where excessive stud lengths prevent the tighening of a nut with standard sockets.

Each geared offset is manufactured to customers specifications and is therefore tailor-made to their application. For this reason it is essential that we obtain as much information as possible.

Lifting Assemblies

A variety of lifting assemblies have been developed to ensure that Pneutorques and Electrotorques can be manoeuvred and operated safely in a production environment.

Standard Series Pneutorques and Electrotorques with a capacity exceeding 9500 N.m are fitted with lifting brackets as standard. These tools are best handled with mechanical assistance.

For applications that require the smaller tools to be suspended by the use of a hoist or counterbalance, Norbar can supply a special purpose lifting bracket.

72mm Series Pneutorques and Electrotorques are all supplied with a lifting handle as standard. This handle is for manual use only and has no provision for alternative mounting such as a hoist or counterbalance.

For applications that require the tool to be suspended using a hoist or counterbalance Norbar can supply a special purpose lifting handle.

Customers requiring lifting handles for tools fitted with and Annular Transducer will require the longer Auto Two Speed versions.

(Obsolete) Pneutorques 52 Diameter

The PT52 is engineered to be one of the lightest and fastest tools of its type on the market. The exceptionally compact 52mm diameter gearbox means that the tool is well balanced, light weight and provides excellent access to bolts.

Three versions are available, Stall, Shut-Off Internal and Shut-Off External.

Fast - 1000 N.m version has a free speed of 125 rpm for rapid bolt run-down.
Light weight - single direction stall tool weighs just 3.8 kg.
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaced.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
1" square drive available, Part Code 18545.
